Compact & Multi Cutting －Rapidly bringing ideas into shape－

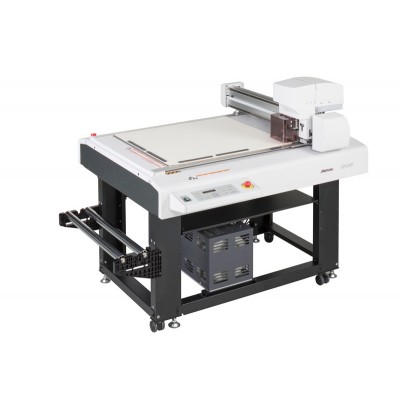

The CFL-605RT supports material sizes up to A2 extra and has a variety of functions including eccentric, tangential, and reciprocating cuttings and creasing. It is designed with Mimaki’s well-established technology, and supports on-demand production by multiple functions, including cutting and creasing. The CFL-605RT delivers efficient sample and package production.

The multifunction plotter strongly supports digital on-demand production

• Eccentric cut
• Tangential cut
• Reciprocating cut
• Creasing

The combination of CFL-605RT and UJF-6042 achieves package fabrication on-demand

Use in combination with the UJF-6042 achieves on-demand production of the original goods by providing the whole production process, including printing onto goods and packages, and cutting of cushioning materials.

CFL-605RT
Type		Flatbed cutting plotter
Driving method		X/Y/Z/Θ 4 axes: DC servo motor
Material holding method		Air suctioning by a vacuum unit
Maximum media		630 mm x 530 mm
Cutting area		610 mm × 510 mm
Maximum cutting speed		XY: 423 mm/s (45° angle direction) Z: 30 mm/s
Maximum downforce pressure		Eccentric cutter: 1,000 g / Tangential cutter and Creasing roller: 1,500 g
Maximum media thickness		Reciprocating cutter: 10 mm / Tangential cutter: 2 mm *1
Maximum media weight		10 kg (This is not one-point-load strength)
Static  accuracy	Repeatability	0.2 mm or lower (Material shrinkage is ignored)
	Distance accuracy	Moving distance × ±0.2% or lower or ±0.1 mm or lower Larger value is applied
	Original repetition  accuracy	0.1 mm or lower
A unit		Attachable tools: Eccentric cutter, Pen
B unit		Attachable tools: Reciprocating/Tangential cutter, Creasing roller
Command		MGL-IIc3
Certifications		VCCI class A, FCC class A, ETL UL 60950-1 CE Marking (Machinery directive, RoHS), CB, REACH
Interface		USB 2.0 (High Speed), RS-232C, Ethernet
Noise level		70 db or lower  (The maximum level is generated while a reciprocating cutter or a vacuum blower is used.)
Operational environment		Temperature: 5 °C–35 °C, 35%–75% RH (Non-condensing) Guaranteed humidity range for an accurate operation: 12 °C–25 °C, 45%–65% RH (Non-condensing)
Power specification		Single phase AC 100–120 V/200–240 V, 50/60 Hz
Power consumption		500 W or lower
Dimensions (W × D × H)		1,320 mm × 1,045 mm × 1,100 mm
Weight		109 kg or lower (Blower, 23 kg, included)





Model

CFL-605RT

	Effective cutting area: 610 x 510 mm (24.0 x 20.0")
